Terracotta Tiled Church Floor Cleaned and Sealed in Eaton, Norwich

Posted on January 19, 2018 by AbzDominise

St Andrews church serves a large congregation in Eaton Village which is located just outside the city of Norwich on the south side. A sizeable extension was built onto the old church in the 1980s to accommodate the ever-increasing number of people wanting to attend and it was in this part of the building where a problem had developed with the Terracotta tiled flooring.

The tiles chosen by the architect were made from a surprisingly soft terracotta clay which had been sealed with an oil-based product (probably Osmo Polyx Oil or similar) but the coating generally had worn away badly, particularly along the main foot traffic lane up the aisle to the altar. The overall appearance was extremely tired and dull with wide lanes of ground-in dirt.

The clients asked us to clean the floor and replace the thin oil finish with something more durable and easy to maintain.

Terracotta Floor Tiles Before Renovation St Andrews Church Eaton Norfolk

Deep Cleaning Terracotta Church Tiles

Our first job was to remove the now very patchy finish and deep-clean the entire surface of the floor. This was achieved using a strong solution of Tile Doctor Pro Clean mixed with a generous quantity of Tile Doctor Remove & Go. The combined solution was left to soak into the Terracotta tile and grout for about twenty minutes before being agitated with a green scrubbing pad fitted to our rotary machine. The tile was so soft I felt that a black pad would probably have been too harsh and may have damaged some of the religious symbols which had been moulded into a number of individual tiles.

The resulting clay, dirt and sealer slurry was then power rinsed and vacuumed away with our Ninja machine. These machines force hot water under high pressure onto the floor and then extracts the resulting soiled water away with suction. It was an expensive investment for the company, but it certainly makes work like this much easier.

Any remaining soiling in the grout lines was removed by hand using Tile Doctor Oxy-Gel which is a more powerful but manageable gel form of Pro Clean. Also, there were a few really stubborn areas in the corners where the oil finish had pooled and hardened during application. To deal with these and completely remove the shiny patches it was necessary to use a 100-grit hand-held diamond block.

After a final rinse to remove any trace of cleaning product the whole floor was left to dry off overnight, assisted by two industrial fans and a commercial dehumidifier.

Sealing Terracotta Church Tiles in Eaton village

On returning to the church after the previous day’s cleaning, we spot tested the tiles across the whole floor area and found that the fans and dehumidifier had done their job and the substrate was easily dry enough to accept a sealer. We knew that a damp proof membrane had been laid under the floor at the point of installation, so moisture ingress wasn’t going to be a problem. What was an issue however was the high porosity of the clay tile now that it had been stripped of ingrained dirt and the old sealer.

I usually apply Tile Doctor Seal and Go to Terracotta tiles as it leaves the floor with an attractive subtle sheen, however we realised that the floor would probably soak up around a dozen coats or more if applied directly. With this in mind we decided to start with the application of two base coats of Tile Doctor Colour Grow. Colour Grow is a penetrating sealer that would occupy the pores of the Terracotta tile, protecting it from within whilst enhancing the natural colour of the clay at the same time. This was then followed by six coats of Seal and Go which enabled us to achieve the desired level of durability and sheen.

Terracotta Floor Tiles After Renovation St Andrews Church Eaton Norfolk

When we had finished the work, this is what the client had to say:

“After careful consideration of several contractors, it was decided that Nicholas White provided the most sympathetic solution to our flooring needs and at a competitive price. The work was completed as promised with minimum fuss. At all times Nicholas and his staff worked in a professional manner and were totally respectful of their sensitive surroundings.

We were very satisfied with the final work and would have no hesitation in recommending this contractor to other potential clients. J Holmes, Warden St Andrews Eaton.”

Source: Terracotta Tile Cleaning and Renovation Service in Norwich, Norfolk

Large Vinyl Tiled Church Floor Stripped and Sealed Oxford

Posted on June 23, 2017 by AbzDominise

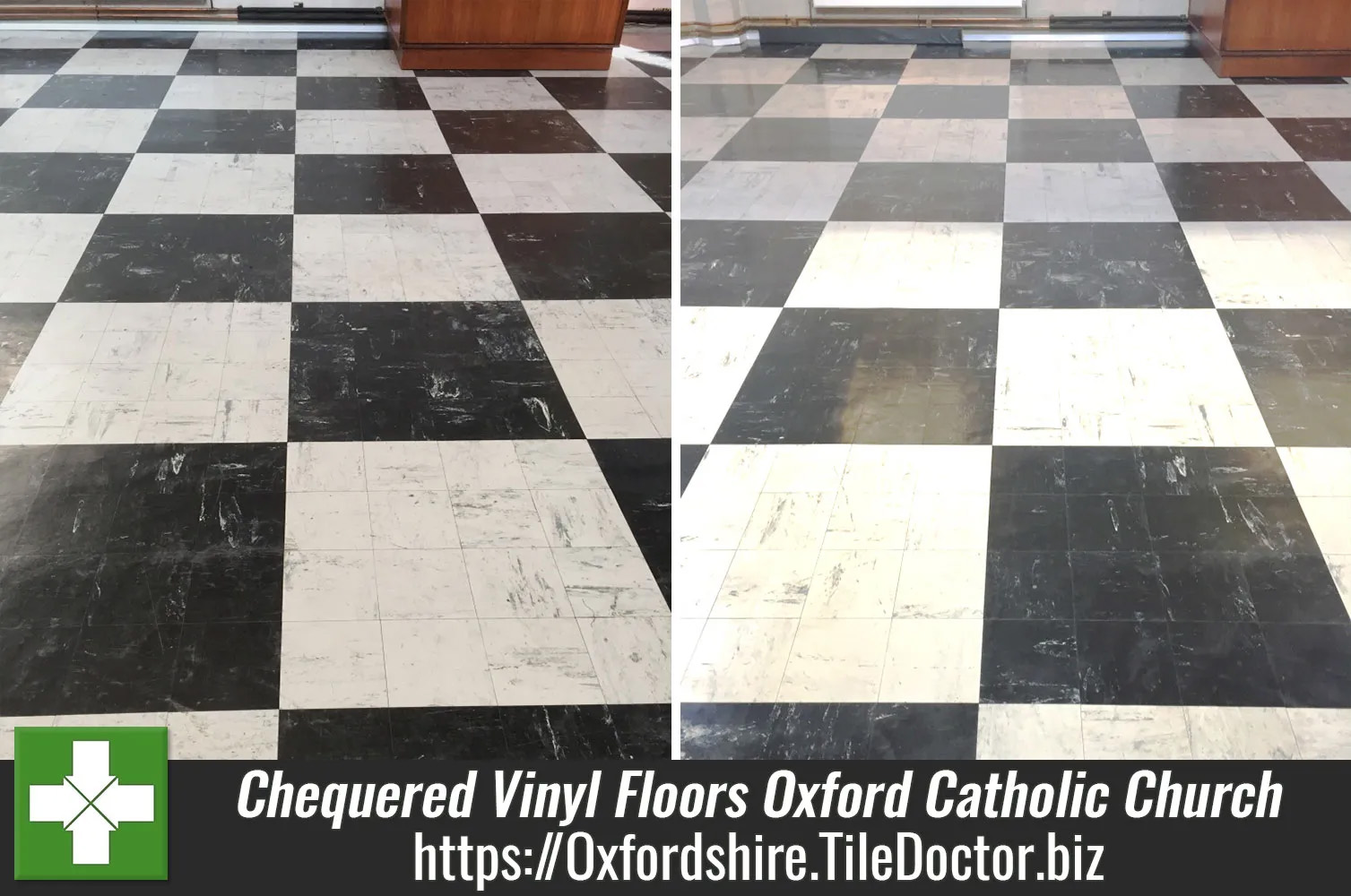

These photos of a Black and White Chequered Vinyl floor are actually from the Holy Rood Catholic Church in Oxford which is part of the North Hinksey Parish. It’s a popular church visited by many parishioners so the floor gets a lot of wear and I was asked to give it a good deep clean and re-seal.

Chequered Vinyl Lino floor Before Cleaning Sealing in Oxford

Cleaning Soiled Vinyl Floor Tiles

The Vinyl tiles had been sealed with a polish before so my first job was to strip the old polish off the floor. Fortunately, I have a good product for doing that in the shape of Tile Doctor Vinyl Strip which is an effective heavy-duty floor polish stripper that quickly removes polish and coatings from vinyl floors.

The Vinyl Strip was applied to the floor, left to soak in for a while and then scrubbed in using a scrubbing pad attached to a rotary machine. I then rinsed the floor with water.

The cleaning process released a lot of dirt from the floor which was rinsed away with water and then extracted using a wet vacuum. Once the floor was clean I was able to check the floor and repeat the process for any stubborn areas that needed extra work and once I was 100% happy I left for the evening.

Sealing a Victorian Tiled Floor

I returned the next day to seal the floor with two coats of Tile Doctor Vinyl Shine applying the first coat in an up and down direction and the second coat side to side.

Vinyl Shine is a high solids polymer floor seal and polish designed to protect and enhance the appearance of Vinyl floor tiles. The formula includes special polymers which produce a ‘Wet Look’ finish whilst enhancing slip-resistance. A first coat seals and protects the floor and a second produces a gloss finish.

This was a huge floor and naturally the Church was open most days so the work was spread over two weeks doing two days each week.

Chequered Vinyl Lino floor After Cleaning Sealing in Oxford

I’m not sure the photographs I took actually do the work justice however my customer was certainly pleased with the difference and left the following glowing testimonial for me.

“Barry and Nick did a great job and was a pleasure to have around, always letting us know what was going to happen next. The final invoice was exactly as his initial quote. We are very impressed with his work and I will definitely contact him for some work in my home.”

Source: Vinyl Tile Maintenance Service in Oxfordshire

Restoring Quarry Tiled Steps at a Gloucestershire Church

Posted on March 27, 2017 by AbzDominise

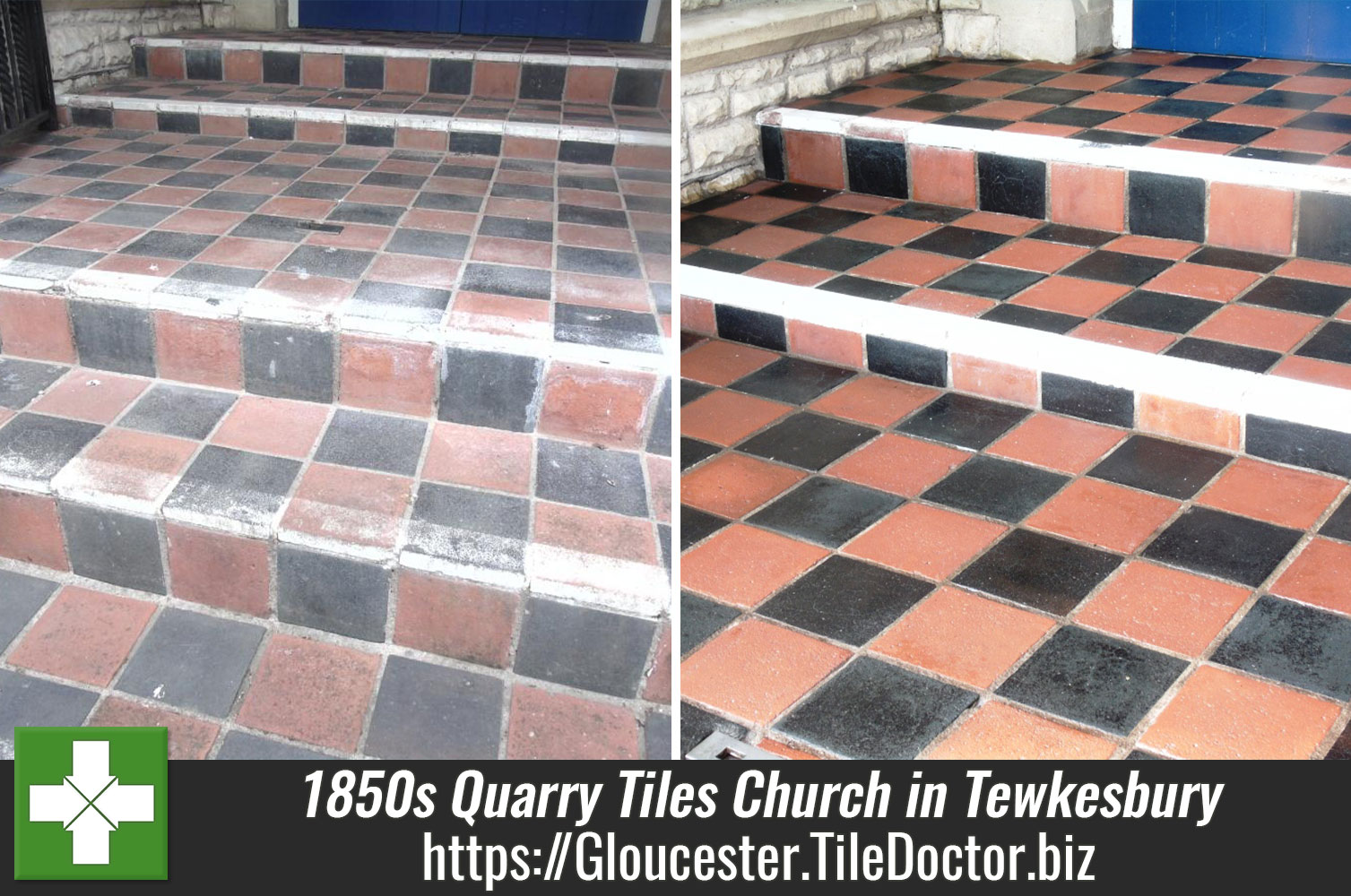

Tewkesbury, the town and civil parish in Gloucestershire, is famous for the Tewkesbury Abbey, a Norman abbey church dating back to the 7th century so it has a lot of history and some very old buildings. Although not one of the oldest buildings in the town I was recently called to a small church in Tewksbury to restore the Quarry tiled entrance way dating back to the 1850s. The tiles had become very heavily ingrained with pigeon droppings, paint, cement, and general dirt over the years – and they were well past due for some professional attention.

Old Quarry Tiled Church Steps Before Cleaning Tewkesbury

Deep Cleaning Dirty Quarry Tiled Steps

My first job was to scrape away all the excess pigeon droppings and paint that could be removed by hand. Once the floor was clear, I was able to cover it with a strong solution of two of our cleaning products: Tile Doctor Remove and Go and Tile Doctor NanoTech HBU. While the cleaners are similarly powerful, they serve slightly different purposes.

Remove and Go is specially designed to strip away any old sealers, synthetic finishes, adhesives, cements, and paints. It also helps to draw old ingrained stains and remove heavy grease build-up. NanoTech HBU on the other hand is a penetrating cleaner designed to work where other cleaners won’t. It does this by utilizing nano-sized particles to reach underneath tough stains, dissolve them, and lift them out. Both products are suitable for use on polished and unpolished natural stone, including Limestone, Marble, Slate, Travertine and, of course, Quarry.

The cleaning solution was left to dwell for 45 minutes and then scrubbed into the tiles using a black pad fitted to a buffing machine. I then repeated this process with the same products to clean the grout lines. When I was happy with the overall cleanliness of the tiles, I spot cleaned some particularly stubborn stains using a steam cleaner in combination with a handheld scraper and some more NanoTech HBU.

Old Quarry Tiled Church Steps During Cleaning Tewkesbury

Sealing a Quarry Tiled Entrance Way

After finishing the cleaning process, I left the tiles to dry for two days. The tiles needed a good amount of time to dry completely because the old tiles don’t have the reasonably modern benefit of a damp-proof membrane.

Upon my return to the church I checked for any damp issues, and when satisfied that there weren’t any to deal with, I proceeded to seal the tiles using four coats of Tile Doctor Colour Grow. This is an impregnating sealer that enhances the natural colours in the Quarry tiles and provides the natural look, matte finish that the proprietor of the church had requested.

As you can see from the photo below, the result of the restoration was transformational. Needless to say, the parishioners will be very happy with the rejuvenated entrance way and, thanks to a highly durable sealant, the steps will be protected for the long term.

Source: Tile and Stone Cleaning and Restoration in Gloucestershire

Restoring the Tiled Floors at St’ Mary’s in Bath Following a Fire

Posted on August 29, 2016 by AbzDominise

Back in June, I had the absolute pleasure of undertaking a large scale tiled floor restoration at St. Mary’s Church in Bath. An architect who does a lot of commissions in Bath and the surrounding areas got in touch with me as they needed to restore the very weathered and worn Church flooring, which dates back to 1840.

The Church itself had suffered a lot from fire damage and the Terrazzo flooring had lost any shine due to both exposure to the smoke and, of course, a lot of wear and tear over the course of 176 years. There were also a number of missing tiles that needed to be replaced.

St Marys Church Bath Before Fire Restoration

In addition, some old carpet which was beyond repair had been pulled up to reveal some fantastic red Quarry tiles that the architect hoped could also be restored. They had discovered that some of the tiles had been removed in front of the Altar (an area of around 2.5 square metres) and cemented over due to the Altar being moved back a metre.

Fully restoring both large areas of tiled flooring would take time however with numerous contractors and trades also working in the building at the same time I completed the work in stages over a period of two months.

Cleaning and Sealing Terrazzo Tiles

To begin, I took moisture readings over all areas due to be worked on. In some places, the levels of moisture were high for two reasons: first, a significant amount of water had been used to quell the fire, and second the red Quarry tiles had been laid with no damp proof membrane due to the age of the building.

Next, I liaised with the architect to decide what tile and pattern would be best to replace the cement area in order to compliment the surrounding red tiles. We decided on a similar shape and colour from original style. I then removed the cement, re-cemented and tiled the area accordingly. Following this, I removed the badly damaged Terrazzo tiles and replaced them with spare replica tiles that the architect had leftover from previous projects.

My method for restoring the Terrazzo tiles was to use the Tile Doctor four pad burnishing system, applying each diamond encrusted pad in turn – from Coarse to Very Fine – to clean and polish the stone. I then sealed the tiles with an impregnating sealer known as Tile Doctor Colour Grow which enhances the natural colours in the stone. Finally, I went over the tiles again with the Very Fine burnishing pad to refine the shine. Needless to say, I checked for moisture before sealing, and thankfully the floor proved dry.

St Marys Church Bath During Fire Restoration

Cleaning and Sealing Red Quarry Tiles

In some areas, the red Quarry tiles had glue on them from the carpet being stuck down for many years. I manually scraped off the large, tough glue residues, and once this had been done, I used Tile Doctor Remove and Go combined with Tile Doctor Pro Clean to soften and break down any particularly stubborn glue deposits. After rinsing the floor, I went over it again with the Coarse grit burnishing pad to give the surface a really good clean. The remaining Quarry tiles were cleaned by using the same Coarse grit pad. using water to lubricate the process and rinsing periodically as I worked.

Having cleaned the tiles, I left the Church for a week to allow the builders and other trades to finish their work. Upon my return, I ran some damp tests to and found the readings were sky high, meaning sealing was not an option at this time. I discussed this issue with the architect and we decided to carry on with the completion in a month, leaving the floor enough time to dry out and for any other building work to be completed. By that time, the heating system would have also been installed and would work to help the floor to dry out quicker.

A month passed, and I returned to seal the Quarry tiles. However, before doing so I noticed efflorescence in some areas and neutralised it using Tile Doctor Acid Gel. I then left the floor a further two days to dry, by which time the Acid Gel had successfully removed all traces of efflorescence. To my satisfaction, the moisture readings I took upon my return were low, meaning the tiles were ready to be sealed.

St Marys Church Bath After Fire Restoration

To seal the tiles, I applied several costs of Tile Doctor Colour Grow, an impregnating sealer which helps protects with no damp proof membrane, follows by a few coats of Tile Doctor Seal and Go, a sealer which prices a nice satin shine finish. This really enhanced the old fire red pigment in the tiles.

While it was a long and difficult process to fully restore both sets of tiles, the outcome was very much worth the wait. Looking at the before and after photographs, it’s easy to see why the architect, priest and the parishioners were absolutely delighted with the results. I’m also really pleased to have contributed to the restoration and continued conservation of this wonderful building.

Source: Tile and Stone Restoration Service in South East Wales

Refurbishing a Victorian Quarry Tiled Floor at Church in Frankton

Posted on April 23, 2016 by AbzDominise

These beautiful Quarry tiled floors belong to a 13th century church in the heart of the old village of Frankton. I did some research on the internet and discovered that the church had gone through a major restoration in 1872 so it’s most probable the tiles date back to that time.

Victorian Floor Tile Cleaning Frankton Church

Cleaning Victorian Tiles

There were multiple quarry tiled floors that were all in need of a deep clean and seal; however there was concern that cleaning the tiles using conventional cleaning methods requiring a lot of water could result in damp permeating into the structure of the building and considering the age of the building may this could cause damage. With this in mind I ran some tests to work out an alternative and I worked out that the best alternative would be to use Acid Gel which would stay in place followed by a steam clean.

Victorian Floor Tiles Frankton Church Before Cleaning

There was quite a lot of floor to cover and I need to work in relatively small sections so it took two days to complete the cleaning. I used the method I worked out earlier applying Acid Gel, and then leaving it to dwell for ten minutes before working it in with a black scrubbing pad fitted to a buffing machine. The gel and resultant soil was then removed with a wet vacuum and then the section was steam cleaned to lift out any further dirt and neutralise the acid.

Victorian Floor Tiles Frankton Church During Cleaning

Sealing Victorian floor tiles

On the third day I returned to seal the floors; there are a number of sealers I could have used for this type of floor however with the building being as old as it was I wanted to ensure the tiles could breathe and any damp could rise up through the tiles. Additionally I wanted the sealer to bring out the best in the tiles so with these points in mind I sealed the floor using four coats of Tile Doctor Seal and Go extra which covers all these points and is the recommended sealer for Victorian and Quarry tiles.

Victorian Floor Tiles Frankton Church After Sealing

I think you will agree the floors now look fantastic and with the sealer to protect them they should stay this way for some time to come, although give the amount of traffic these floors receive I will be working out a maintenance plan for them.

Source: Church Floor Tile Renovation service in Warwickshire

Terrazzo Tiled Church Floor Restored in Redhill

Posted on April 10, 2016 by AbzDominise

Every so often I will get the chance to undertake tiled flooring restoration work in public buildings, and late last year I was asked to clean and seal a Terrazzo floor at a church in Redhill. The floor wasn’t in great condition; not only was it suffering from a significant amount of dirt due to a lack of proper maintenance, but it was also marked by several cracks. Overall, the appearance of the floor was very displeasing and the church was keen to have me in to complete some repairs, along with a deep clean and seal.

Terrazzo Flooring Redhill Church Before Restoration

Terrazzo Flooring Redhill Church During Crack Repair

Cleaning and Burnishing a Terrazzo tiled floor

Upon initial inspection of the floor, I was unable to say for certain whether there was any old sealer remaining on the tiles so to ensure it was removed I began the cleaning process by applying a layer of Tile Doctor Remove & Go, which is a powerful cleaner/stripper designed to both break down old layers of sealant and lift out any ingrained dirt.

I then gave the floor a rinse with water to remove any excess cleaning product, before moving onto a different cleaning process, known as burnishing. Burnishing involves polishing the surface with to achieve an aesthetically pleasing sheen finish. The Tile Doctor burnishing system consists of four diamond encrusted burnishing pads with different levels of grit.

Terrazzo Flooring Redhill Church Part Cleaned

I began by applying a Coarse burnishing pad, before working my way through the system with Medium, Fine and finally Very Fine pads to achieve a very refined, high quality polished finish, you need to use a little water to help lubricate the burnishing and you need to rinse the floor after each pad to remove the slurry.

Terrazzo Flooring Redhill Church Cleaning in Progress

Terrazzo Flooring Redhill Church During Burnishing

Once the floor had been allowed to dry completely following both cleaning processes, I set about filling the cracks in the tiles with two part resin stone filler.

Terrazzo Flooring Redhill Church Crack Filled

Then, once the filler had dried, I re-polished the floor using only the extra fine burnishing pad, focusing my attention along the crack lines. This really helped to reduce the evidence of cracks and left instead a smoothed surface.

Sealing a Terrazzo tiled floor

The final stage of the restoration involved sealing the Terrazzo tiles with Colour Grow, which is Tile Doctor’s colour intensifying sealer that impregnates the stone seeping into its pores to provide protecting the floor from within with a robust seal capable of withstanding the high amount of traffic experienced by church floors. The last step was to buff the entire area with a soft white buffing pad.

The church was very pleased with the results, especially that they were able to show it off for last year’s Remembrance Sunday and left the following comment on the Tile Doctor feedback system:

“Many thanks for the work on our Terrazzo floors. It’s only when you see the before and after that you realise how grubby they had become. We have had loads of complimentary comments as to how good they look. Bill Bailey was a very personable and professional contractor who put himself out to work around our requirements and others working in the buildings at the same time. More than happy to recommend the company and Bill personally. Many thanks for a job well done.”

Terrazzo Flooring Redhill Church Before and After Restoration

Source: Church Floor Tile Renovation service in Glasgow

Renovating an Old Quarry Tiled Church Floor in Greenock

Posted on April 4, 2016 by AbzDominise

The photographs below are from the Lyle Kirk Church of Scotland in Greenock where we asked to clean the Quarry tiles in the main entrance of the church. As you can imagine the floor is very busy and is constantly in use from parishioners and had now become very unappealing from ingrained dirt and was proving impossible to clean effectively.

Lyle Kirk Church Quarry Tiles Before Cleaning Greenock

Cleaning Old Quarry Tiles

With such an old floor we had to take a lot of care and so using a buffer machine to speed up the process was out of the question. As a result so we cleaned the whole tiled floor including the grout by hand using various strength dilutions of Tile Doctor Remove and Go and then Pro-Clean to remove the years of wax and coatings from the tiles, both products I should mention are safe to use on tile, stone and grout. It was arduous and slow work taking us four days to complete and the floor was given a thorough wash down once clean to remove any trace of cleaning product before sealing.

Dealing with Efflorescence

Whilst cleaning the floor we noticed some signs of efflorescence which is where salts from the ground below evaporate up through the pores in the tile and leave white deposits on the surface of the tile above. The efflorescence was removed easily using Tile Doctor Grout Clean-Up but it alerted us to the fact that normally old floors were traditionally laid directly on compacted earth with no damp proof course and that damp could be an issue that could affect the sealer.

Sealing an old Quarry Tiled Floor

We left the floor to dry off and when we returned being cognizant of the damp issue we chose Tile Doctor Seal and Go Extra to seal the floor, this a new sealing product which is highly breathable and ideal for sealing external tiles or internal tiles where there is a damp problem. Four coats were sufficient and once done the floor looked completely transformed.

Lyle Kirk Church Quarry Tiles After Cleaning Greenock
